EasySnap3D

Just a snap for your insoles.

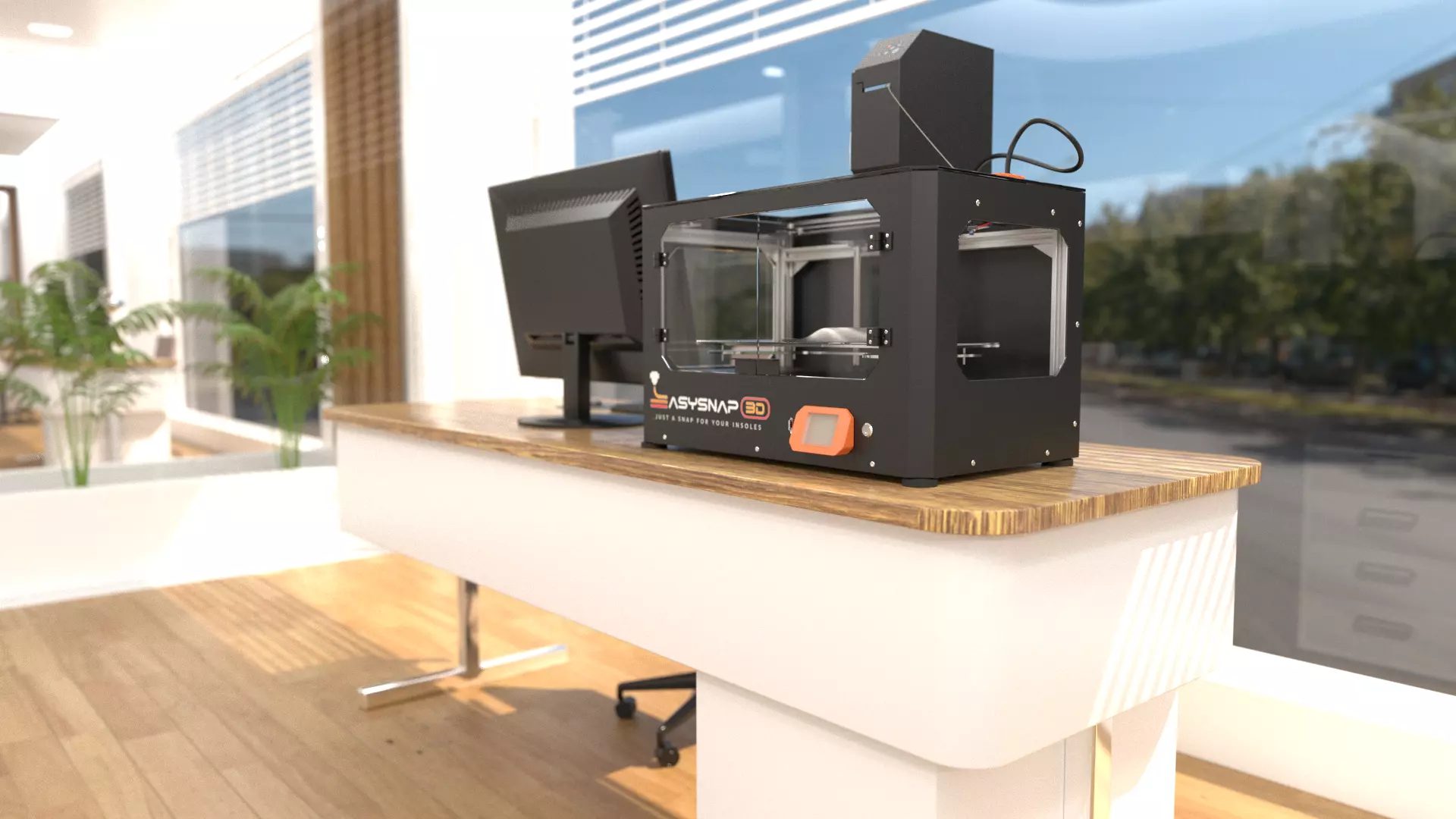

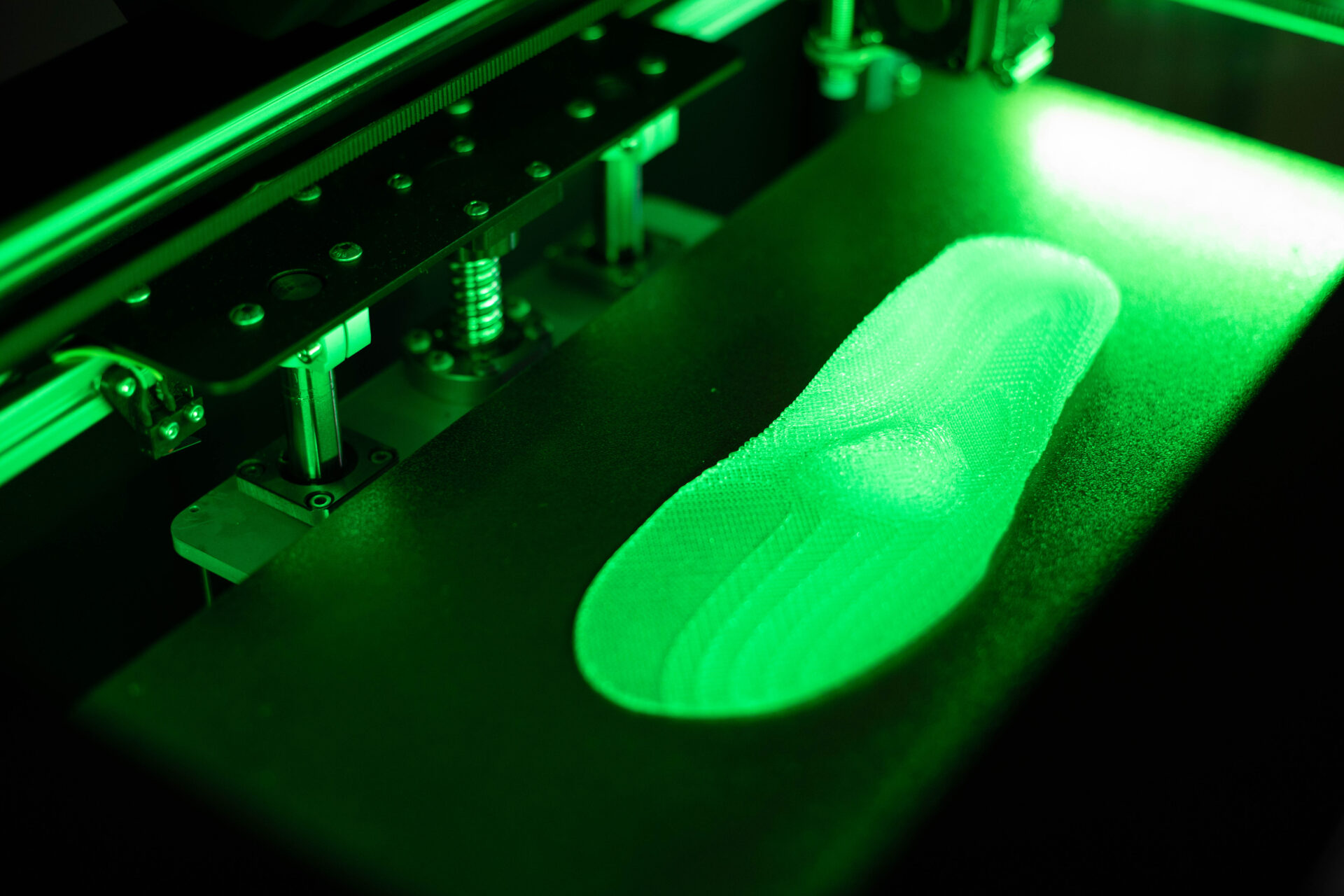

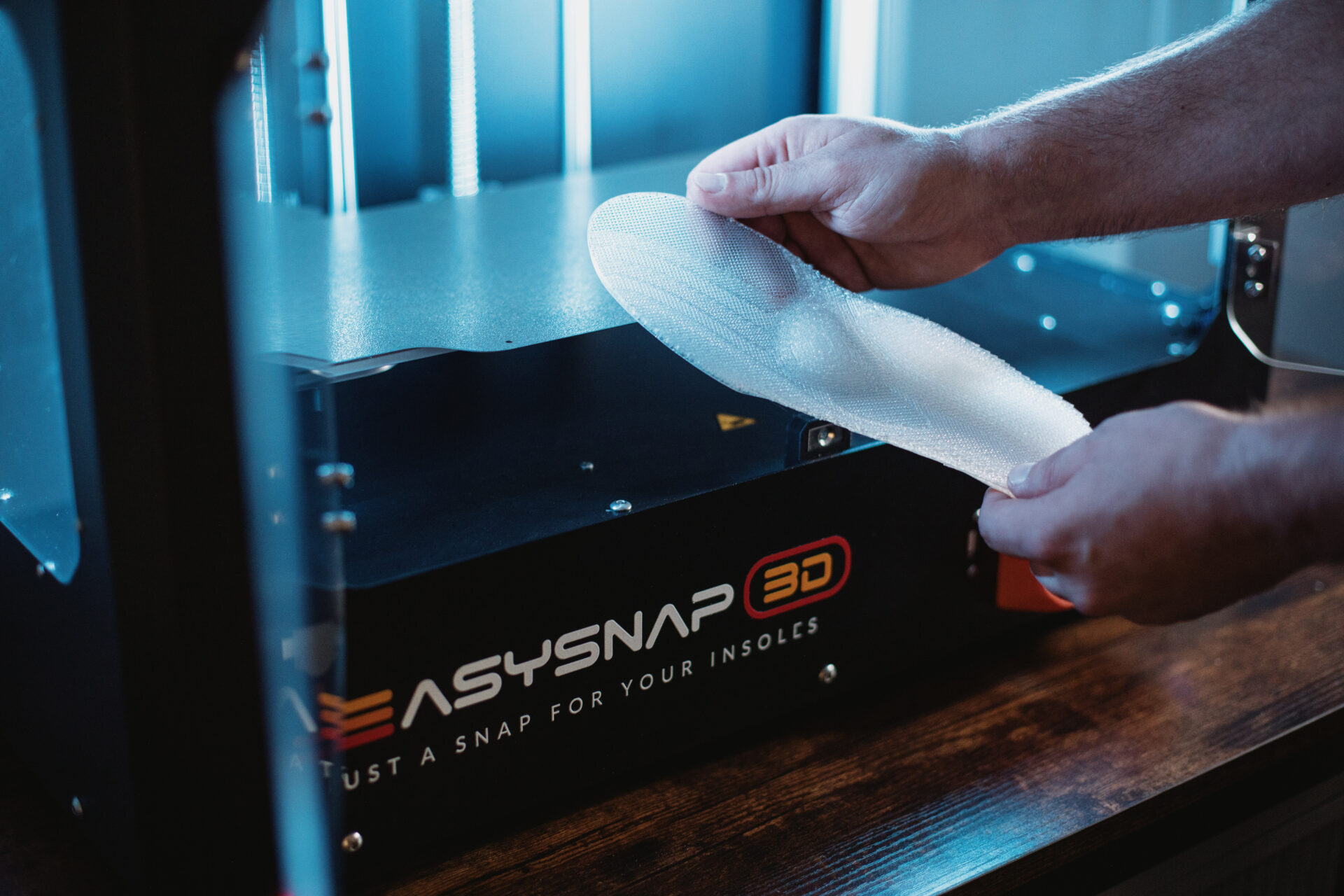

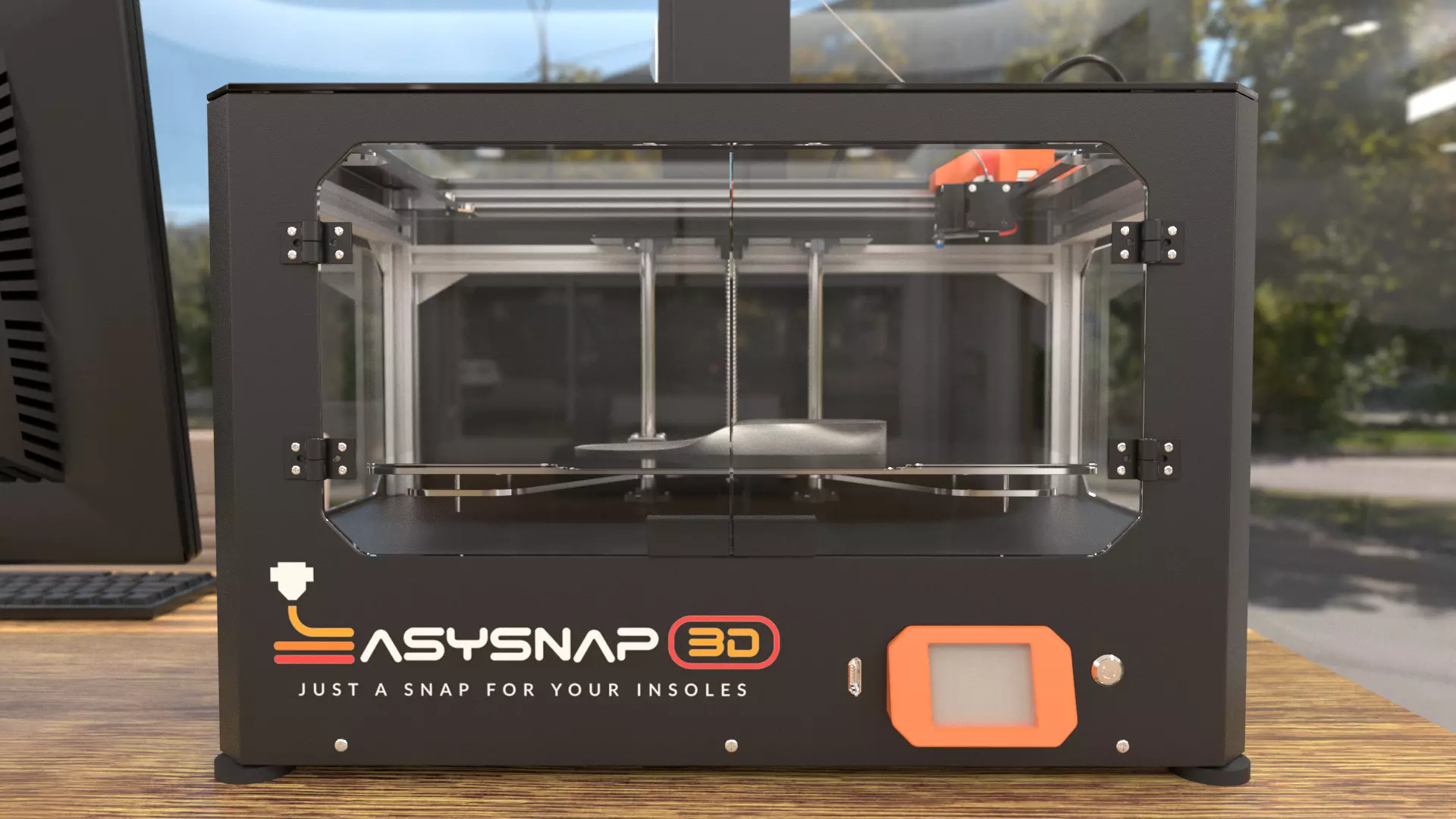

EasySnap3d is a FFF (Fused Filament Manufacturing) 3d printer developed by Sensor Medica. Its function is to transform the 3D digital models of the insoles processed in CAD, with the aid of Sensor Medica’s CAM software, into insoles by depositing fused thermoplastic filaments layer by layer. The printer is designed to work with soft filaments such as SensorTECH 85A, supplied by Sensor Medica.

Why use EASYSNAP 3D?

Connectivity: The 3D printer uses a high speed wireless connection with Wi-Fi protocol for online printing and Legacy USB connection for offline printing, granting a potentiale 100% uptime for your massive insole production. – Slice3D: EasySnap3D uses Slice3D, a software that uses an algorithm for printing transition zones, in order to guarantee maximum foot comfort in areas of different densities. – Fast: The device prints a pair of insoles in approximately 1 hour, depending on the shape, design and density of the orthotic.

TECHNICAL INFORMATION

FULLBODY SCAN

Thanks to a markerless, radiation-free and non-invasive 3D scanning mode, it allows the acquisition of the patient's shoulders, back, pelvis and lower limbs.

EDIT REPERE POINTS

Landmarks are automatically detected and can be manually edited after acquisition. Possibility of applying different textures such as the depth image and the concavity image.

RX OVERLAPPING

Spine3D allows the loading of an X-ray exam, to compare it with the automatically detected points. Rx can be seen on the 3D image of the patient.

CORONAL VIEW

This visualization allows the analysis of postural parameters on the coronal plane for the evaluation of imbalances between the right and left side of the body.

CORONAL RMS SURFACE ROTATION

Thanks to RMS surface rotation it is possible to appreciate rotations of the spine with respect to the surface of the back.

CORONAL VIEW BENDING ANGLES

Bending angles offer an estimate of the deviations and possible deformations of the spine in the coronal plane.

SAGITTAL VIEW

This visualization allows the analysis on the sagittal plane of the most important postural parameters such as the kyphotic and lordotic angle and the cervical and lumbar arrows.

SAGITTAL VIEW KNEE ANGLES

Thanks to the full body acquisition it is also possible to evaluate the knee angles on the sagittal plane.

TRANSVERSE VIEW

This visualization allows the analysis of the patient's back, being able to evaluate any deformities or rotations resulting from postural compensations.

ENHANCED EXPERIENCE WITH SPINE3D MAT+

EasySnap3D:

Dimensions: 660x570x700 mm
Weight: 37 kg
Working area: 390x145x145 mm

EasySnap3D XL:

Dimensions: 660x660x700 mm
Weight: 43 kg
Working area: 390x235x145 mm
Nozzle diameter: 0.8 mm
Filament diameter: 1.75 mm
Power supply: 100-240V
Absorption: 1.5-3.5 A
High resolution printing from 0.1 to 0.6 mm
Temperature up to 285°C
Multilayer printing strategy with Shore with areas of different density, elements from 30A to 70D
Shore hardness of the filament: from 60A to 95A
Filament dryer included
Printing material certified for skin contact.
